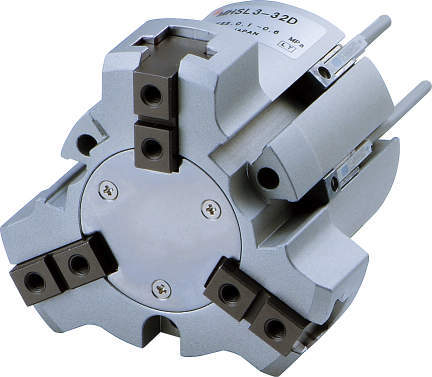

圓形主體3爪型長行程滑動導軌方式SMC氣缸型號：MHSL3-16D

蘇州上野機電設備有限公司詢價谘詢電話：17895046997   劉先生   同微信

■可對應異徑工件把持的長行程型

·標準（MHS3）的2倍以上的開閉行程。

・與標準型的安裝間距兼容

【MHS係列的特點】

■采用楔形凸輪結構

・由於楔形機構，可獲得緊湊且大的把持力。

■高重複精度：±0.01mm

■抑製高度的輕量、緊湊設計

■可從2個方向安裝

・使用車身攻絲、使用車身通孔。

■通過安裝基準凹坑，安裝主體時的出芯容易

■安裝主機時的定位容易

・在氣動卡盤上麵實施定位用銷孔加工。

■可安裝自動開關

・可在車身側麵的安裝用槽上安裝種類豐富的無觸點自動開關。

・2色表示式和耐水性提高形也可以選定。

・可安裝小型自動開關

蘇州上野機電設備有限公司銷售型號：

MHSL3-16D

MHSL3-16D-X4

MHSL3-16D-X5

MHSL3-16D-X56

MHSL3-16D-X63

MHSL3-16D-X79

MHSL3-16D-X79A

MHSL3-16D-X50

MHSL3-16D-M9NS

MHSL3-16D-M9N

MHSL3-16D-M9NLS

MHSL3-16D-M9NL

MHSL3-16D-M9NZ

MHSL3-16D-M9PL

MHSL3-16D-M9PZ

MHSL3-16D-M9PSAPC

MHSL3-16D-M9PSDPC

MHSL3-16D-M9BS

MHSL3-16D-M9B

MHSL3-16D-M9BM

MHSL3-16D-M9BLS

MHSL3-16D-M9BL

MHSL3-16D-M9BZS

MHSL3-16D-M9BZ

MHSL3-16D-M9BSAPCS

MHSL3-16D-M9NVS

MHSL3-16D-M9NV

MHSL3-16D-M9NVM

MHSL3-16D-M9NVLS

MHSL3-16D-M9NVL

MHSL3-16D-M9PV

MHSL3-16D-M9PVL

MHSL3-16D-M9PVSAPC

MHSL3-16D-M9BVS

MHSL3-16D-M9BV

MHSL3-16D-M9BVM

MHSL3-16D-M9BVLS

MHSL3-16D-M9BVL

MHSL3-16D-M9BVZ

MHSL3-16D-M9NWS

MHSL3-16D-M9NW

MHSL3-16D-M9NWL

MHSL3-16D-M9PWS

MHSL3-16D-M9PWSAPC

MHSL3-16D-M9PWSDPC

MHSL3-16D-M9BWS

MHSL3-16D-M9BW

MHSL3-16D-M9BWMS

MHSL3-16D-M9BWM

MHSL3-16D-M9BWLS

MHSL3-16D-M9BWL

MHSL3-16D-M9BWZ

MHSL3-16D-M9BWSDPC

MHSL3-16D-M9NWVS

MHSL3-16D-M9NWV

MHSL3-16D-M9NWVM

MHSL3-16D-M9NWVLS

MHSL3-16D-M9NWVL

MHSL3-16D-M9NWVZ

MHSL3-16D-M9PWV

MHSL3-16D-M9BWV

MHSL3-16D-M9BWVM

MHSL3-16D-M9BWVLS

MHSL3-16D-M9BWVL

MHSL3-16D-M9BWVZ

MHSL3-16D-M9BWVSDPC

MHSL3-16D-M9BA

MHSL3-16D-M9BALS

MHSL3-16D-M9BAL

MHSL3-16D-M9BASBPC

MHSL3-16D-M9BASDPC

MHSL3-16D-M9BAV

MHSL3-16D-M9BAVLS

MHSL3-16D-M9BAVL

MHSL3-16D-M9NW-X4

MHSL3-16D-M9BALS-X5

MHSL3-16D-M9BAL-X5

MHSL3-16D-M9BAVL-X5

MHSL3-16D-M9BL-X56

MHSL3-16D-M9BWVL-X63

MHSL3-16D-M9N-X79

MHSL3-16D-M9BMS-X79

MHSL3-20D

MHSL3-20D-X4

MHSL3-20D-X5

MHSL3-20D-X53

MHSL3-20D-X56

MHSL3-20D-X79

MHSL3-20D-M9NS

MHSL3-20D-M9N

MHSL3-20D-M9NM

MHSL3-20D-M9NL

MHSL3-20D-M9NZ

MHSL3-20D-M9P

MHSL3-20D-M9PL

MHSL3-20D-M9PSAPC

MHSL3-20D-M9BS

MHSL3-20D-M9B

MHSL3-20D-M9BM

MHSL3-20D-M9BLS

MHSL3-20D-M9BL

MHSL3-20D-M9BZ

MHSL3-20D-M9BSDPC

MHSL3-20D-M9NVS

MHSL3-20D-M9NV

MHSL3-20D-M9NVLS

MHSL3-20D-M9NVL

MHSL3-20D-M9NVZ

MHSL3-20D-M9PVL

MHSL3-20D-M9PVSAPC

MHSL3-20D-M9BVS

MHSL3-20D-M9BV

MHSL3-20D-M9BVMS

MHSL3-20D-M9BVM

MHSL3-20D-M9BVLS

MHSL3-20D-M9BVL

MHSL3-20D-M9BVZ

MHSL3-20D-M9NWL

MHSL3-20D-M9PW

MHSL3-20D-M9PWSDPC

MHSL3-20D-M9BWS

MHSL3-20D-M9BW

MHSL3-20D-M9BWM

MHSL3-20D-M9BWLS

MHSL3-20D-M9BWL

MHSL3-20D-M9BWZ

MHSL3-20D-M9BWSBPC

MHSL3-20D-M9BWSDPC

MHSL3-20D-M9NWV

MHSL3-20D-M9NWVL

MHSL3-20D-M9PWVL

MHSL3-20D-M9PWVSDPC

MHSL3-20D-M9BWV

MHSL3-20D-M9BWVMS

MHSL3-20D-M9BWVL

MHSL3-20D-M9BWVZ

MHSL3-20D-M9BA

MHSL3-20D-M9BALS

MHSL3-20D-M9BAL

MHSL3-20D-M9BAZ

MHSL3-20D-M9BASBPC

MHSL3-20D-M9BAV

MHSL3-20D-M9BAVLS

MHSL3-20D-M9BAVL

MHSL3-20D-M9BAVZ

MHSL3-20D-M9BVS-X4

MHSL3-20D-M9BVLS-X4

MHSL3-20D-M9BLS-X5

MHSL3-20D-M9BL-X5

MHSL3-20D-M9BW-X5

MHSL3-20D-M9BWVL-X5

MHSL3-20D-M9BAL-X5

MHSL3-20D-M9BAVL-X5

MHSL3-20D-M9BLS-X56

MHSL3-20D-M9BW-X56

MHSL3-20D-M9BWSDPC-X56

MHSL3-25D

MHSL3-25D-X4

MHSL3-25D-X5

MHSL3-25D-X53

MHSL3-25D-X56

MHSL3-25D-X79

MHSL3-25D-X79A

MHSL3-25D-M9NS

MHSL3-25D-M9N

MHSL3-25D-M9NM

MHSL3-25D-M9NLS

MHSL3-25D-M9NL

MHSL3-25D-M9P

MHSL3-25D-M9PL

MHSL3-25D-M9PSAPC

MHSL3-25D-M9BS

MHSL3-25D-M9B

MHSL3-25D-M9BM

MHSL3-25D-M9BLS

MHSL3-25D-M9BL

MHSL3-25D-M9BZ

MHSL3-25D-M9BSAPC

MHSL3-25D-M9BSDPC

MHSL3-25D-M9NVS

MHSL3-25D-M9NV

MHSL3-25D-M9NVMS

MHSL3-25D-M9NVM

MHSL3-25D-M9NVLS

MHSL3-25D-M9NVL

MHSL3-25D-M9NVZS

MHSL3-25D-M9NVZ

MHSL3-25D-M9PVL

MHSL3-25D-M9BVS

MHSL3-25D-M9BV

MHSL3-25D-M9BVMS

MHSL3-25D-M9BVM

MHSL3-25D-M9BVLS

MHSL3-25D-M9BVL

MHSL3-25D-M9BVZS

MHSL3-25D-M9BVZ

MHSL3-25D-M9BVMDPC

MHSL3-25D-M9NW

MHSL3-25D-M9NWL

MHSL3-25D-M9NWSAPC

MHSL3-25D-M9PW

MHSL3-25D-M9PWZ

MHSL3-25D-M9BWS

MHSL3-25D-M9BW

MHSL3-25D-M9BWMS

MHSL3-25D-M9BWM

MHSL3-25D-M9BWLS

MHSL3-25D-M9BWL

MHSL3-25D-M9BWZ

MHSL3-25D-M9BWSAPC

MHSL3-25D-M9BWSDPC

MHSL3-25D-M9NWVS

MHSL3-25D-M9NWV

MHSL3-25D-M9NWVSAPC

MHSL3-25D-M9PWVZ

MHSL3-25D-M9PWVSDPC

MHSL3-25D-M9BWV

MHSL3-25D-M9BWVM

MHSL3-25D-M9BWVLS

MHSL3-25D-M9BWVL

MHSL3-25D-M9BWVZ

MHSL3-25D-M9BWVSBPC

MHSL3-25D-M9BWVSDPCS

MHSL3-25D-M9BWVSDPC

MHSL3-25D-M9BAS

MHSL3-25D-M9BA

MHSL3-25D-M9BALS

MHSL3-25D-M9BAL

MHSL3-25D-M9BAZ

MHSL3-25D-M9BASBPC

MHSL3-25D-M9BASDPC

MHSL3-25D-M9NAVL

MHSL3-25D-M9BAVS

MHSL3-25D-M9BAV

MHSL3-25D-M9BAVLS

MHSL3-25D-M9BAVL

MHSL3-25D-M9BAVMAPC

MHSL3-25D-M9BAVSBPCS

MHSL3-25D-M9BAVSBPC

MHSL3-25D-M9BAVSDPC

MHSL3-25D-M9BV-X4

MHSL3-25D-M9NWL-X4

MHSL3-25D-M9BW-X4

MHSL3-25D-M9BAVM-X4

MHSL3-25D-M9BL-X5

MHSL3-25D-M9BA-X5

MHSL3-25D-M9BAL-X5

MHSL3-25D-M9BAZ-X5

MHSL3-25D-M9BASDPC-X5

MHSL3-25D-M9BV-X56

MHSL3-32D

MHSL3-32D-X4

MHSL3-32D-X5

MHSL3-32D-X53

MHSL3-32D-X56

MHSL3-32D-X79

MHSL3-32D-M9N

MHSL3-32D-M9NM

MHSL3-32D-M9NLS

MHSL3-32D-M9NL

MHSL3-32D-M9NL4

MHSL3-32D-M9NZ

MHSL3-32D-M9NSAPC

MHSL3-32D-M9PLS

MHSL3-32D-M9PL

MHSL3-32D-M9PSAPCS

MHSL3-32D-M9PSBPC

MHSL3-32D-M9BS

MHSL3-32D-M9B

MHSL3-32D-M9B3

MHSL3-32D-M9BMS

MHSL3-32D-M9BM

MHSL3-32D-M9BLS

MHSL3-32D-M9BL

MHSL3-32D-M9BL3

MHSL3-32D-M9BL4

MHSL3-32D-M9BZS

MHSL3-32D-M9BZ

MHSL3-32D-M9BSBPCS

MHSL3-32D-M9BSBPC

MHSL3-32D-M9BSDPC

MHSL3-32D-M9NVS

MHSL3-32D-M9NV

MHSL3-32D-M9NV3

MHSL3-32D-M9NVL

MHSL3-32D-M9NVZ

MHSL3-32D-M9PVS

MHSL3-32D-M9PV

MHSL3-32D-M9PVL

MHSL3-32D-M9PVZ

MHSL3-32D-M9BVS

MHSL3-32D-M9BV

MHSL3-32D-M9BV3

MHSL3-32D-M9BVMS

MHSL3-32D-M9BVM

MHSL3-32D-M9BVLS

MHSL3-32D-M9BVL

MHSL3-32D-M9BVL3

MHSL3-32D-M9BVL4

MHSL3-32D-M9BVZS
