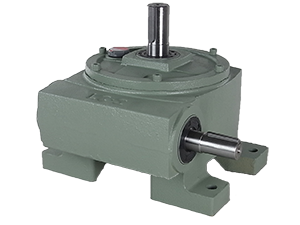

LC (蝸杆1段)1/10~1/60

因為是無電機型，所以有輸入軸轉速可以任意選擇的便利性。這是一種沒有故障，可以在任何地方廣泛使用的形式。型號、製動器尺寸、減速比多，可根據用途選擇。因為使用了最適合蝸杆的潤滑油，所以效率也變得更好了。

全國服務熱線：0512-6605 1469

在線谘詢

產品詳情

製品記號	中心距離	減速比	入力回転數	入力	出力トルク	製品重量	油量
(製品記號について)			(min??)	(kW)	(N･m)	(kg)	(ℓ)
	37	10	1800	0.33	13.70	3.00	0.15
LC0-10			1500	0.30	14.70
	37	15	1800	0.30	15.70	3.00	0.15
LC0-15			1500	0.27	16.70
	37	20	1800	0.25	16.70	3.00	0.15
LC0-20			1500	0.22	17.60
	37	25	1800	0.22	16.70	3.00	0.15
LC0-25			1500	0.19	17.60
	37	30	1800	(0.24)	(17.60)	3.00	0.15
LC0-30			1500	(0.22)	(18.60)
	37	40	1800	(0.19)	(18.60)	3.00	0.15
LC0-40			1500	(0.17)	(19.60)
	37	50	1800	(0.17)	(17.60)	3.00	0.15
LC0-50			1500	(0.15)	(18.60)
	37	60	1800	(0.12)	(15.70)	3.00	0.15
LC0-60			1500	(0.11)	(16.70)
	53	10	1800	1.20	52.90	6.00	0.30
LC1-10			1500	1.10	57.80
	53	15	1800	0.89	55.90	6.00	0.30
LC1-15			1500	0.78	57.80
	53	20	1800	0.61	47.00	6.00	0.30
LC1-20			1500	0.57	51.90
	53	25	1800	0.52	51.90	6.00	0.30
LC1-25			1500	0.48	55.90
	53	30	1800	0.60	63.70	6.00	0.30
LC1-30			1500	0.54	67.60
	53	40	1800	0.49(0.40)	58.8(42.9)	6.00	0.30
LC1-40			1500	0.43(0.36)	60.8(45.4)
	53	50	1800	0.37(0.34)	56.8(44.6)	6.00	0.30
LC1-50			1500	0.32(0.31)	58.8(47.1)
	53	60	1800	(0.30)	(41.20)	6.00	0.30
LC1-60			1500	(0.28)	(43.10)
	60	10	1800	1.60	71.50	8.60	0.40
LC1.5-10			1500	1.50	77.40
	60	15	1800	1.30	79.40	8.60	0.40
LC1.5-15			1500	1.20	85.30
	60	20	1800	0.94	71.50	8.60	0.40
LC1.5-20			1500	0.85	77.40
	60	25	1800	0.74	63.70	8.60	0.40
LC1.5-25			1500	0.65	66.60
	60	30	1800	0.86	86.20	8.60	0.40
LC1.5-30			1500	0.80	96.00
	60	40	1800	0.67(0.57)	80.4(67.6)	8.60	0.40
LC1.5-40			1500	0.63(0.52)	88.2(71.6)
	60	50	1800	(0.55)	(70.60)	8.60	0.40
LC1.5-50			1500	(0.51)	(77.40)
	60	60	1800	(0.47)	(69.60)	8.60	0.40
LC1.5-60			1500	(0.46)	(74.50)
	76	10	1800	3.00	137.00	12.00	0.65
LC2-10			1500	2.70	147.00
	76	15	1800	2.40	157.00	12.00	0.65
LC2-15			1500	2.20	167.00
	76	20	1800	1.70	137.00	12.00	0.65
LC2-20			1500	1.40	137.00
	76	25	1800	1.40	137.00	12.00	0.65
LC2-25			1500	1.20	147.00
	76	30	1800	1.60	176.00	12.00	0.65
LC2-30			1500	1.40	186.00
	76	40	1800	1.20(0.87)	157(111)	12.00	0.65
LC2-40			1500	1.10(0.79)	167(118)
	76	50	1800	0.97(0.84)	157(124)	12.00	0.65
LC2-50			1500	0.87(0.79)	167(134)
	76	60	1800	(0.81)	(137.00)	12.00	0.65
LC2-60			1500	(0.69)	(137.00)
	86	10	1800	4.30	196.00	16.00	0.95
LC3-10			1500	3.80	206.00
	86	15	1800	3.20	206.00	16.00	0.95
LC3-15			1500	3.00	225.00
	86	20	1800	2.40	206.00	16.00	0.95
LC3-20			1500	2.10	206.00
	86	25	1800	2.00	186.00	16.00	0.95
LC3-25			1500	1.80	196.00
	86	30	1800	2.30	245.00	16.00	0.95
LC3-30			1500	2.00	265.00
	86	40	1800	1.60(1.40)	225(183)	16.00	0.95
LC3-40			1500	1.40(1.26)	235(193)
	86	50	1800	1.40(1.11)	196(166)	16.00	0.95
LC3-50			1500	1.30(1.03)	225(178)
	86	60	1800	(1.00)	(176.00)	16.00	0.95
LC3-60			1500	(0.94)	(186.00)
	100	10	1800	5.80	265.00	27.00	1.70
LC4-10			1500	5.30	284.00
	100	15	1800	4.60	294.00	27.00	1.70
LC4-15			1500	4.20	314.00
	100	20	1800	3.50	294.00	27.00	1.70
LC4-20			1500	3.20	314.00
	100	25	1800	2.30	245.00	27.00	1.70
LC4-25			1500	2.20	274.00
	100	30	1800	3.20	343.00	27.00	1.70
LC4-30			1500	2.80	353.00
	100	40	1800	2.40(2.00)	333(269)	27.00	1.70
LC4-40			1500	2.30(1.90)	372(286)
	100	50	1800	1.80(1.60)	314(258)	27.00	1.70
LC4-50			1500	1.70(1.50)	343(279)
	100	60	1800	1.70(1.40)	294(240)	27.00	1.70
LC4-60			1500	1.60(1.30)	314(259)
	123	10	1800	11.00	500.00	44.00	2.70
LC5-10			1500	10.00	539.00
	123	15	1800	8.30	549.00	44.00	2.70
LC5-15			1500	7.60	598.00
	123	20	1800	5.90	510.00	44.00	2.70
LC5-20			1500	5.10	549.00
	123	25	1800	4.50	490.00	44.00	2.70
LC5-25			1500	4.00	510.00
	123	30	1800	5.70	647.00	44.00	2.70
LC5-30			1500	4.90	666.00
	123	40	1800	3.90(3.00)	568(411)	44.00	2.70
LC5-40			1500	3.80(2.80)	637(441)
	123	50	1800	3.30(2.60)	549(415)	44.00	2.70
LC5-50			1500	2.90(2.40)	578(451)
	123	60	1800	(2.60)	(490.00)	44.00	2.70
LC5-60			1500	(2.30)	(519.00)
	148	10	1800	18.00	813.00	73.00	6.00
LC6-10			1500	15.00	892.00
	148	15	1800	13.00	911.00	73.00	6.00
LC6-15			1500	12.00	980.00
	148	20	1800	9.40	813.00	73.00	6.00
LC6-20			1500	8.70	902.00
	148	25	1800	7.40	804.00	73.00	6.00
LC6-25			1500	6.60	843.00
	148	30	1800	9.60	1078.00	73.00	6.00
LC6-30			1500	8.60	1176.00
	148	40	1800	6.00	951.00	73.00	6.00
LC6-40			1500	5.20	980.00
	148	50	1800	5.10(4.30)	921(725)	73.00	6.00
LC6-50			1500	4.60(4.00)	980(788)
	148	60	1800	4.30(3.70)	833(745)	73.00	6.00
LC6-60			1500	3.80(3.40)	882(801)
	175	15	1800	19.00	1274.00	115.00	7.80
LC7-15			1500	18.00	1372.00
	175	20	1800	15.00	1274.00	115.00	7.80
LC7-20			1500	13.00	1274.00
	175	25	1800	11.00	1078.00	115.00	7.80
LC7-25			1500	9.80	1176.00
	175	30	1800	13.00	1470.00	115.00	7.80
LC7-30			1500	12.00	1568.00
	175	40	1800	10.00	1470.00	115.00	7.80
LC7-40			1500	9.20	1568.00
	175	50	1800	7.80(6.40)	1274(1133)	115.00	7.80
LC7-50			1500	7.20(6.00)	1372(1252)
	175	60	1800	(6.70)	(1176.00)	115.00	7.80
LC7-60			1500	(6.20)	(1274.00)
	200	15	1800	27.00	1764.00	169.00	9.00
LC8-15			1500	25.00	1960.00
	200	20	1800	21.00	1764.00	169.00	9.00
LC8-20			1500	19.00	1960.00
	200	25	1800	16.00	1666.00	169.00	9.00
LC8-25			1500	14.00	1764.00
	200	30	1800	18.00	2058.00	169.00	9.00
LC8-30			1500	17.00	2254.00
	200	40	1800	14.00	2058.00	169.00	9.00
LC8-40			1500	13.00	2156.00
	200	50	1800	11.00(8.50)	1862(1468)	169.00	9.00
LC8-50			1500	10.00(7.80)	1960(1584)
	200	60	1800	8.40(7.10)	1666(1368)	169.00	9.00
LC8-60			1500	7.60(6.50)	1764(1472)
	250	15	1800	48.00	3234.00	340.00	29.00
LC9-15			1500	42.00	3430.00
	250	20	1800	36.00	3136.00	340.00	29.00
LC9-20			1500	33.00	3430.00
	250	25	1800	29.00	2940.00	340.00	29.00
LC9-25			1500	26.00	3136.00
	250	30	1800	34.00	3920.00	340.00	29.00
LC9-30			1500	30.00	4116.00
	250	40	1800	24.00	3528.00	340.00	29.00
LC9-40			1500	24.00	4116.00
	250	50	1800	21.00	3430.00	340.00	29.00
LC9-50			1500	18.00	3528.00
	250	60	1800	(15.00)	(3038.00)	340.00	29.00
LC9-60			1500	(14.00)	(3332.00)
	295	20	1800	-	-	450.00	30.00
LC10-20			1500	54.00	5684.00
	295	30	1800	-	-	450.00	30.00
LC10-30			1500	47.00	6860.00
	295	40	1800	-	-	450.00	30.00
LC10-40			1500	38.00	6762.00
	295	50	1800	-	-	450.00	30.00
LC10-50			1500	25.00	5586.00
	295	60	1800	-	-	450.00	30.00
LC10-60			1500	22.00	5292.00
