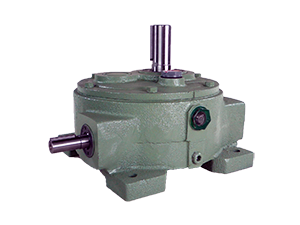

蝸杆( LDC )1/10~1/320

因為是無電機型，所以有輸入軸轉速可以任意選擇的便利性。這是一種沒有故障，可以在任何地方廣泛使用的形式。型號、製動器尺寸、減速比多，可根據用途選擇。因為使用了最適合蝸杆的潤滑油，所以效率也變得更好了。

全國服務熱線：0512-6605 1469

在線谘詢

產品詳情

製品記號	中心距離	減速比	入力回転數	入力	出力トルク	製品重量	油量
(製品記號について)			(min??)	(kW)	(N･m)	(kg)	(ℓ)
	37	60	1800	0.25	47.00	5.5	0.5
LDC0-60			1500	0.22	49.00
	37	75	1800	0.22	47.00	5.5	0.5
LDC0-75			1500	0.18	49.00
	37	80	1800	0.20	50.00	5.5	0.5
LDC0-80			1500	0.16	50.00
	37	100	1800	0.17	50.00	5.5	0.5
LDC0-100			1500	0.14	50.00
	37	120	1800	(0.16)	(47.00)	5.5	0.5
LDC0-120			1500	(0.15)	(51.00)
	37	150	1800	(0.16)	(47.00)	5.5	0.5
LDC0-150			1500	(0.14)	(51.00)
	37	160	1800	(0.13)	(51.00)	5.5	0.5
LDC0-160			1500	(0.11)	(51.00)
	37	180	1800	(0.15)	(47.00)	5.5	0.5
LDC0-180			1500	(0.14)	(51.00)
	37	200*	1800	(0.12)	(51.00)	5.5	0.5
LDC0-200			1500	(0.11)	(51.00)
	37	220*	1800	(0.10)	(51.00)	5.5	0.5
LDC0-220			1500	(0.09)	(51.00)
	37	240*	1800	(0.12)	(51.00)	5.5	0.5
LDC0-240			1500	(0.10)	(51.00)
	37	260*	1800	(0.11)	(51.00)	5.5	0.5
LDC0-260			1500	(0.09)	(51.00)
	37	280*	1800	(0.09)	(51.00)	5.5	0.5
LDC0-280			1500	(0.08)	(51.00)
	37	300*	1800	(0.09)	(51.00)	5.5	0.5
LDC0-300			1500	(0.07)	(51.00)
	37	320*	1800	(0.07)	(51.00)	5.5	0.5
LDC0-320			1500	(0.06)	(51.00)
	53	60	1800	0.54	118.00	13	1.1
LDC1-60			1500	0.49	127.00
	53	75	1800	0.42	118.00	13	1.1
LDC1-75			1500	0.38	127.00
	53	80	1800	0.50	157.00	13	1.1
LDC1-80			1500	0.42	157.00
	53	100	1800	0.41	157.00	13	1.1
LDC1-100			1500	0.35	157.00
	53	120	1800	0.44(0.40)	157(122)	13	1.1
LDC1-120			1500	0.37(0.36)	157(129)
	53	150	1800	0.35(0.34)	157(127)	13	1.1
LDC1-150			1500	0.3(0.31)	157(134)
	53	160	1800	0.34(0.37)	157(153)	13	1.1
LDC1-160			1500	0.29(0.32)	157(153)
	53	180	1800	(0.38)	(157.00)	13	1.1
LDC1-180			1500	(0.32)	(157.00)
	53	200*	1800	0.26(0.31)	157(153)	13	1.1
LDC1-200			1500	0.23(0.27)	157(153)
	53	220*	1800	(0.27)	(157.00)	13	1.1
LDC1-220			1500	(0.24)	(157.00)
	53	240*	1800	(0.31)	(157.00)	13	1.1
LDC1-240			1500	(0.27)	(157.00)
	53	260*	1800	(0.26)	(157.00)	13	1.1
LDC1-260			1500	(0.23)	(157.00)
	53	280*	1800	(0.22)	(157.00)	13	1.1
LDC1-280			1500	(0.19)	(157.00)
	53	300*	1800	(0.28)	(157.00)	13	1.1
LDC1-300			1500	(0.24)	(157.00)
	53	320*	1800	(0.25)	(157.00)	13	1.1
LDC1-320			1500	(0.22)	(157.00)
	76	60	1800	1.10	265.00	26	2.9
LDC2-60			1500	1.00	274.00
	76	75	1800	0.96	274.00	26	2.9
LDC2-75			1500	0.81	274.00
	76	80	1800	0.89	274.00	26	2.9
LDC2-80			1500	0.80	294.00
	76	100	1800	0.72	274.00	26	2.9
LDC2-100			1500	0.65	294.00
	76	120	1800	0.72(0.75)	274(274)	26	2.9
LDC2-120			1500	0.65(0.69)	294(294)
	76	150	1800	0.59(0.65)	274(274)	26	2.9
LDC2-150			1500	0.54(0.60)	294(294)
	76	160	1800	0.58(0.61)	294(294)	26	2.9
LDC2-160			1500	0.49(0.52)	294(294)
	76	180	1800	(0.62)	(294.00)	26	2.9
LDC2-180			1500	(0.52)	(294.00)
	76	200*	1800	0.48(0.52)	294(294)	26	2.9
LDC2-200			1500	0.41(0.45)	294(294)
	76	220*	1800	0.46	294.00	26	2.9
LDC2-220			1500	0.39	294.00
	76	240*	1800	(0.46)	(294.00)	26	2.9
LDC2-240			1500	(0.39)	(294.00)
	76	260*	1800	(0.49)	(294.00)	26	2.9
LDC2-260			1500	(0.42)	(294.00)
	76	280*	1800	(0.41)	(294.00)	26	2.9
LDC2-280			1500	(0.35)	(294.00)
	76	300*	1800	(0.47)	(294.00)	26	2.9
LDC2-300			1500	(0.40)	(294.00)
	76	320*	1800	(0.40)	(294.00)	26	2.9
LDC2-320			1500	(0.34)	(294.00)
	90	60	1800	1.70	412.00	38	3.8
LDC3-60			1500	1.60	451.00
	90	75	1800	1.60	431.00	38	3.8
LDC3-75			1500	1.40	451.00
	90	80	1800	1.40	451.00	38	3.8
LDC3-80			1500	1.20	451.00
	90	100	1800	1.30	451.00	38	3.8
LDC3-100			1500	1.10	470.00
	90	120	1800	1.10	431.00	38	3.8
LDC3-120			1500	0.99	470.00
	90	150	1800	(1.20)	(470.00)	38	3.8
LDC3-150			1500	(0.99)	(470.00)
	90	160	1800	0.88	470.00	38	3.8
LDC3-160			1500	0.75	470.00
	90	180	1800	(1.10)	(470.00)	38	3.8
LDC3-180			1500	(0.91)	(470.00)
	90	200*	1800	(0.87)	(470.00)	38	3.8
LDC3-200			1500	(0.74)	(470.00)
	90	220*	1800	(0.81)	(470.00)	38	3.8
LDC3-220			1500	(0.69)	(470.00)
	90	240*	1800	(0.80)	(470.00)	38	3.8
LDC3-240			1500	(0.68)	(470.00)
	90	260*	1800	(0.63)	(470.00)	38	3.8
LDC3-260			1500	(0.65)	(470.00)
	90	280*	1800	(0.69)	(470.00)	38	3.8
LDC3-280			1500	(0.59)	(470.00)
	90	300*	1800	(0.76)	(470.00)	38	3.8
LDC3-300			1500	(0.65)	(470.00)
	90	320*	1800	(0.65)	(470.00)	38	3.8
LDC3-320			1500	(0.56)	(470.00)
	100	60	1800	2.70	637.00	50	4.9
LDC4-60			1500	2.40	676.00
	100	75	1800	2.20	637.00	50	4.9
LDC4-75			1500	2.00	676.00
	100	80	1800	2.10	666.00	50	4.9
LDC4-80			1500	1.80	676.00
	100	100	1800	1.80	676.00	50	4.9
LDC4-100			1500	1.50	676.00
	100	120	1800	1.7(1.8)	686(686)	50	4.9
LDC4-120			1500	1.4(1.6)	686(686)
	100	150	1800	1.5(1.5)	686(686)	50	4.9
LDC4-150			1500	1.3(1.3)	686(686)
	100	160	1800	1.3(1.4)	686(686)	50	4.9
LDC4-160			1500	1.1(1.2)	686(686)
	100	180	1800	1.3(1.4)	686(686)	50	4.9
LDC4-180			1500	1.1(1.2)	686(686)
	100	200*	1800	1.1(1.1)	686(686)	50	4.9
LDC4-200			1500	0.97(1.0)	706(706)
	100	220*	1800	(1.20)	(686.00)	50	4.9
LDC4-220			1500	(1.00)	(706.00)
	100	240*	1800	0.97(1.0)	686(686)	50	4.9
LDC4-240			1500	0.85(0.92)	706(706)
	100	260*	1800	(0.96)	(686.00)	50	4.9
LDC4-260			1500	(0.77)	(706.00)
	100	280*	1800	(0.98)	(686.00)	50	4.9
LDC4-280			1500	(0.85)	(706.00)
	100	300*	1800	(1.10)	(686.00)	50	4.9
LDC4-300			1500	(0.95)	(706.00)
	100	320*	1800	(0.89)	(686.00)	50	4.9
LDC4-320			1500	(0.78)	(706.00)
	123	60	1800	4.80	1176.00	95	11
LDC5-60			1500	4.30	1274.00
	123	75	1800	3.80	1176.00	95	11
LDC5-75			1500	3.50	1274.00
	123	80	1800	4.10	1372.00	95	11
LDC5-80			1500	3.60	1372.00
	123	100	1800	3.40	1372.00	95	11
LDC5-100			1500	2.80	1372.00
	123	120	1800	2.8(3.0)	1176(1171)	95	11
LDC5-120			1500	2.6(2.8)	1274(1257)
	123	150	1800	2.7(2.6)	1274(1182)	95	11
LDC5-150			1500	2.4(2.4)	1372(1284)
	123	160	1800	2.5(2.6)	1372(1372)	95	11
LDC5-160			1500	2.1(2.3)	1372(1372)
	123	180	1800	(2.70)	(1372.00)	95	11
LDC5-180			1500	(2.30)	(1372.00)
	123	200*	1800	2.2(2.3)	1372(1372)	95	11
LDC5-200			1500	1.8(2.0)	1372(1372)
	123	220*	1800	(3.50)	(1372.00)	95	11
LDC5-220			1500	(1.90)	(1372.00)
	123	240*	1800	(2.10)	(1372.00)	95	11
LDC5-240			1500	(1.70)	(1372.00)
	123	260*	1800	(2.00)	(1372.00)	95	11
LDC5-260			1500	(1.70)	(1372.00)
	123	280*	1800	(1.90)	(1372.00)	95	11
LDC5-280			1500	(1.60)	(1372.00)
	123	300*	1800	(1.60)	(1372.00)	95	11
LDC5-300			1500	(1.40)	(1372.00)
	123	320*	1800	(1.70)	(1372.00)	95	11
LDC5-320			1500	(1.40)	(1372.00)
	148	60	1800	7.50	1862.00	171	20
LDC6-60			1500	6.90	2058.00
	148	75	1800	5.90	1862.00	171	20
LDC6-75			1500	5.40	1960.00
	148	80	1800	7.20	2450.00	171	20
LDC6-80			1500	5.90	2450.00
	148	100	1800	5.80	2450.00	171	20
LDC6-100			1500	5.20	2450.00
	148	120	1800	5.40	2254.00	171	20
LDC6-120			1500	4.70	2352.00
	148	150	1800	4.2(4.3)	2156(2065)	171	20
LDC6-150			1500	3.8(4.0)	2352(2245)
	148	160	1800	4.40	2450.00	171	20
LDC6-160			1500	3.70	2450.00
	148	180	1800	4.7(4.1)	2450(2123)	171	20
LDC6-180			1500	3.9(3.7)	2450(2282)
	148	200*	1800	3.8(3.8)	2450(2450)	171	20
LDC6-200			1500	3.1(3.2)	2450(2450)
	148	220*	1800	3.40	2450.00	171	20
LDC6-220			1500	3.00	2450.00
	148	240*	1800	3.5(3.6)	2450(2450)	171	20
LDC6-240			1500	3.0(3.1)	2450(2450)
	148	260*	1800	(3.30)	(2450.00)	171	20
LDC6-260			1500	(2.80)	(2450.00)
	148	280*	1800	(3.10)	(2450.00)	171	20
LDC6-280			1500	(2.60)	(2450.00)
	148	300*	1800	(2.90)	(2450.00)	171	20
LDC6-300			1500	(2.50)	(2450.00)
	148	320*	1800	(2.90)	(2450.00)	171	20
LDC6-320			1500	(2.50)	(2450.00)
	175	60	1800	11.00	2744.00	252	25
LDC7-60			1500	10.00	2940.00
	175	75	1800	9.30	2744.00	252	25
LDC7-75			1500	8.60	2940.00
	175	80	1800	11.00	3528.00	252	25
LDC7-80			1500	8.80	3528.00
	175	100	1800	8.80	3332.00	252	25
LDC7-100			1500	7.90	3528.00
	175	120	1800	8.00	3332.00	252	25
LDC7-120			1500	7.30	3528.00
	175	150	1800	6.5(6.7)	3038(3038)	252	25
LDC7-150			1500	6.2(6.2)	3332(3332)
	175	160	1800	6.40	3528.00	252	25
LDC7-160			1500	5.50	3528.00
	175	180	1800	(7.30)	(3528.00)	252	25
LDC7-180			1500	(6.10)	(3528.00)
	175	200*	1800	5.7(5.9)	3528(3528)	252	25
LDC7-200			1500	5.0(4.9)	3528(3528)
	175	220*	1800	(5.80)	(3528.00)	252	25
LDC7-220			1500	(5.00)	(3528.00)
	175	240*	1800	(5.50)	(3528.00)	252	25
LDC7-240			1500	(4.50)	(3528.00)
	175	260*	1800	(5.70)	(3528.00)	252	25
LDC7-260			1500	(4.60)	(3528.00)
	175	280*	1800	(4.60)	(3528.00)	252	25
LDC7-280			1500	(4.00)	(3528.00)
	175	300*	1800	(5.10)	(3528.00)	252	25
LDC7-300			1500	(4.20)	(3528.00)
	175	320*	1800	(4.40)	(3528.00)	252	25
LDC7-320			1500	(3.60)	(3528.00)
	200	60	1800	18.00	4312.00	405	43
LDC8-60			1500	16.00	4606.00
	200	75	1800	14.00	4312.00	405	43
LDC8-75			1500	13.00	4606.00
	200	80	1800	16.00	5292.00	405	43
LDC8-80			1500	15.00	5684.00
	200	100	1800	13.00	4998.00	405	43
LDC8-100			1500	11.00	5292.00
	200	120	1800	14.00	5880.00	405	43
LDC8-120			1500	12.00	5880.00
	200	150	1800	8.9(8.5)	4606(4185)	405	43
LDC8-150			1500	8.2(7.8)	4998(4515)
	200	160	1800	12.00	5880.00	405	43
LDC8-160			1500	9.80	5880.00
	200	180	1800	10(7.1)	4606(3898)	405	43
LDC8-180			1500	7.6(6.5)	4998(4195)
	200	200*	1800	9.2(9.6)	5880(5580)	405	43
LDC8-200			1500	7.8(8.5)	5880(5880)
	200	220*	1800	9.30	5880.00	405	43
LDC8-220			1500	7.10	5880.00
	200	240*	1800	7.9(7.1)	5880(5198)	405	43
LDC8-240			1500	6.7(6.5)	5880(5594)
	200	260*	1800	(9.10)	(5880.00)	405	43
LDC8-260			1500	(8.30)	(5880.00)
	200	280*	1800	(7.80)	(5880.00)	405	43
LDC8-280			1500	(6.60)	(5880.00)
	200	300*	1800	(8.30)	(5880.00)	405	43
LDC8-300			1500	(7.40)	(5880.00)
	200	320*	1800	(7.00)	(5880.00)	405	43
LDC8-320			1500	(6.00)	(5880.00)
	250	60	1800	35.00	8624.00	745	75
LDC9-60			1500	32.00	9506.00
	250	75	1800	30.00	8624.00	745	75
LDC9-75			1500	27.00	9506.00
	250	80	1800	33.00	10780.00	745	75
LDC9-80			1500	30.00	11760.00
	250	100	1800	28.00	10780.00	745	75
LDC9-100			1500	23.00	10780.00
	250	120	1800	26.00	10780.00	745	75
LDC9-120			1500	22.00	10780.00
	250	150	1800	23.00	10780.00	745	75
LDC9-150			1500	21.00	10780.00
	250	160	1800	21.00	11760.00	745	75
LDC9-160			1500	18.00	11760.00
	250	180	1800	(22.00)	(10780.00)	745	75
LDC9-180			1500	(17.00)	(10780.00)
	250	200*	1800	18.00	11760.00	745	75
LDC9-200			1500	15.00	11760.00
	250	220*	1800	18.00	11760.00	745	75
LDC9-220			1500	15.00	11760.00
	250	240*	1800	(16.00)	(11760.00)	745	75
LDC9-240			1500	(14.00)	(11760.00)
	250	260*	1800	(16.00)	(11760.00)	745	75
LDC9-260			1500	(13.00)	(11760.00)
	250	280*	1800	13.00	11760.00	745	75
LDC9-280			1500	11.00	11760.00
	250	300*	1800	(13.00)	(11760.00)	745	75
LDC9-300			1500	(11.00)	(11760.00)
	250	320*	1800	14.00	11760.00	745	75
LDC9-320			1500	12.00	11760.00
